one inner FTO GPX cv joint will not fit
Hi Guys,
I'm a newbie and bought myself a '96 FTO GPX from UK last year with original 66000 km. However i bought it with a broken 4-speed tiptronic gearbox slipping gears.. i picked it up and took it to the Netherlands.
A few months later i went to UK to pickup a gearbox from a '95 FTO and swapped it. It also appeared that the input speedsensor was broken so swapped it with a sensor from a Galant (they are identical and much cheaper) As soon as i wanted to put the driveshafts back in the first problem occurred.. my old shafts were 27 splines and i needed the 25 so towed it back to my garage and ordered 25 splines inner cv joints from ebay.. Also ordered new boot kits from Camskill.co.uk to re-do them properly.
Once the drive shafts were ready i jacked up my fto and got them installed.... took it for a testdrive and it drove smooth! first time that i was able to hit and hear the mivec after a good warm up.
Took it back to the garage and left it for another 2 weeks to have some parts powdercoated.. i came in again to check the fto and i found 2 litrs of Dexron III on the garage floor..
I jacked it up and discovered that the driverside shaft (long one) was not completely inside the differential (5mm's left)
That explained the leaking.. so i tried to get it further in but no matter what i tried it just would not go in any further..
Dismounted everything and took the shafts apart again. there's nothing wrong with the cv joints, the splines are looking good and the Driver side CV joint does go in completely on the passengerside but not vice versa..I took the CIR clip off the shafts to make sure that nothing prevents it from going in any further but no go..
I'm getting desperate now because i'd like to get my FTO ready for the summer and do not prefer changing the Gearbox again..
do you have any ideas what could cause this headache ? do i have the wrong CV joints installed ?
thanks!
Eric
I'm a newbie and bought myself a '96 FTO GPX from UK last year with original 66000 km. However i bought it with a broken 4-speed tiptronic gearbox slipping gears.. i picked it up and took it to the Netherlands.
A few months later i went to UK to pickup a gearbox from a '95 FTO and swapped it. It also appeared that the input speedsensor was broken so swapped it with a sensor from a Galant (they are identical and much cheaper) As soon as i wanted to put the driveshafts back in the first problem occurred.. my old shafts were 27 splines and i needed the 25 so towed it back to my garage and ordered 25 splines inner cv joints from ebay.. Also ordered new boot kits from Camskill.co.uk to re-do them properly.
Once the drive shafts were ready i jacked up my fto and got them installed.... took it for a testdrive and it drove smooth! first time that i was able to hit and hear the mivec after a good warm up.
Took it back to the garage and left it for another 2 weeks to have some parts powdercoated.. i came in again to check the fto and i found 2 litrs of Dexron III on the garage floor..
I jacked it up and discovered that the driverside shaft (long one) was not completely inside the differential (5mm's left)
That explained the leaking.. so i tried to get it further in but no matter what i tried it just would not go in any further..
Dismounted everything and took the shafts apart again. there's nothing wrong with the cv joints, the splines are looking good and the Driver side CV joint does go in completely on the passengerside but not vice versa..I took the CIR clip off the shafts to make sure that nothing prevents it from going in any further but no go..
I'm getting desperate now because i'd like to get my FTO ready for the summer and do not prefer changing the Gearbox again..
do you have any ideas what could cause this headache ? do i have the wrong CV joints installed ?
thanks!
Eric
if it doesn't brake just hit the gas
----------------------------------------
Audi A6 avant 1.9 tdi - 175HP
Honda CRX 1986 - 130 HP
Mitsubishi FTO 1996 - 200HP
----------------------------------------
Audi A6 avant 1.9 tdi - 175HP
Honda CRX 1986 - 130 HP
Mitsubishi FTO 1996 - 200HP
- Shhtuart
- Forum Moderator
- Posts: 1747
- Joined: Sun Aug 05, 2007 5:00 pm
- Location: Melbourne
- Contact:
Re: one inner FTO GPX cv joint will not fit
There's quite a few different drive shafts for the fto.
If your gearboxes were both 4spd tips the the driveshafts should be identical except if you have a lsd in one of them.
You should have compared lengths of the inner cvs before you put them in to eliminate any doubt about the actual cvs.
If your gearboxes were both 4spd tips the the driveshafts should be identical except if you have a lsd in one of them.
You should have compared lengths of the inner cvs before you put them in to eliminate any doubt about the actual cvs.
- flateric
- Apprentice
- Posts: 41
- Joined: Sat Apr 06, 2013 12:38 pm
Re: one inner FTO GPX cv joint will not fit
they're both 4-speed and i must admit that i didn't even think of comparing the innner cv's because i expected the tip-box to be identical. The replacement box came without inner cv's .the left inner cv fits without a problem, it looks like i need a shorter 25 splines inner cv on the driver side.
how to determine if it has an LSD ?
KR
Eric
how to determine if it has an LSD ?
KR
Eric
if it doesn't brake just hit the gas
----------------------------------------
Audi A6 avant 1.9 tdi - 175HP
Honda CRX 1986 - 130 HP
Mitsubishi FTO 1996 - 200HP
----------------------------------------
Audi A6 avant 1.9 tdi - 175HP
Honda CRX 1986 - 130 HP
Mitsubishi FTO 1996 - 200HP
- Taz
- Oldtimer
- Posts: 3995
- Joined: Wed Jan 05, 2011 11:50 am
- Location: Your mothers house
Re: one inner FTO GPX cv joint will not fit
Bennoz wrote: Cum gunt it!
- FTOwnage
- Mechanic
- Posts: 648
- Joined: Tue Oct 09, 2012 11:15 am
- Location: Newcastle
Re: one inner FTO GPX cv joint will not fit
I'm not too sure but if you jack the front of the car up and put it in neutral then spin one wheel, if the other spins in the same direction (or at all) it means it has an LSD.
Once again i'm not too sure on the subject so no one flame me if I turn out to be wrong
Once again i'm not too sure on the subject so no one flame me if I turn out to be wrong
FTO GPvR 6A13 Single Turbo (Almost finished....)
- Vectose
- Forum Moderator
- Posts: 3948
- Joined: Sun Nov 28, 2010 8:45 pm
- Location: Newcastle
Re: one inner FTO GPX cv joint will not fit
That does not work with a Helical LSD, because when there is no load on the wheels it acts as a open diff. Only definitive way to find out if you have a LSD is to check the code or pull the shafts.FTOwnage wrote:I'm not too sure but if you jack the front of the car up and put it in neutral then spin one wheel, if the other spins in the same direction (or at all) it means it has an LSD.
Once again i'm not too sure on the subject so no one flame me if I turn out to be wrong
Bennoz wrote:A whoooole lot 'o jismTechnikhaus wrote:What is in said Bens big penis by the way?
- Daniel2019
- Oldtimer
- Posts: 7957
- Joined: Thu Jan 12, 2012 12:25 pm
- Location: Sydney!
- Contact:
Re: one inner FTO GPX cv joint will not fit
Vectose wrote:pull the shafts.
I fix cars.
Bennoz wrote:I got Bali beli & sharted on my phone. But it was fun
bjk wrote:you old people are no help at all.
- flateric
- Apprentice
- Posts: 41
- Joined: Sat Apr 06, 2013 12:38 pm
Re: one inner FTO GPX cv joint will not fit

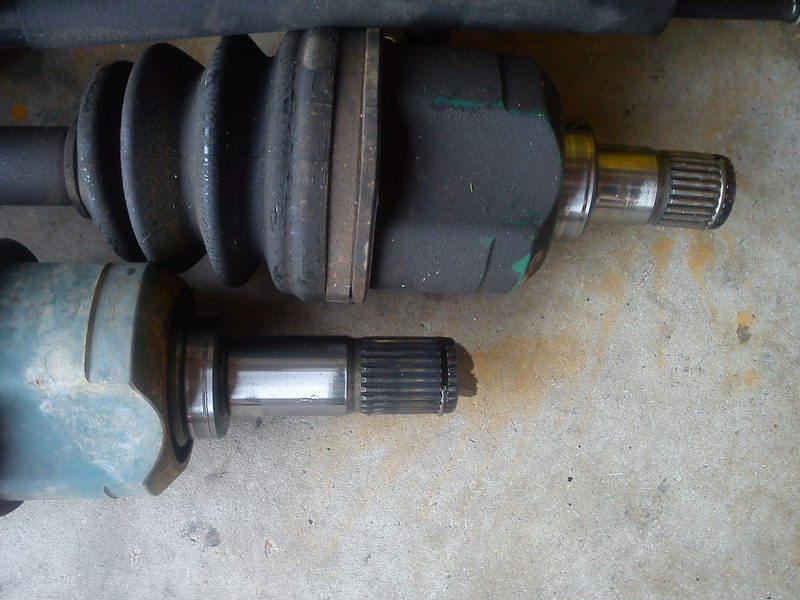

thanks guys! i'm currently 3hrs driving away from my garage so i have to wait till the end of the week to get the gearboxcode but as far as i remember both wheels were turning when i was turning one shaft. when the shafts were out i could see through the differential.. i'm more and more convinced that i need the stubby inner cv joint.
- Attachments
-
- innercvstubby.jpg (90.01 KiB) Viewed 724 times
if it doesn't brake just hit the gas
----------------------------------------
Audi A6 avant 1.9 tdi - 175HP
Honda CRX 1986 - 130 HP
Mitsubishi FTO 1996 - 200HP
----------------------------------------
Audi A6 avant 1.9 tdi - 175HP
Honda CRX 1986 - 130 HP
Mitsubishi FTO 1996 - 200HP
- payaya
- Oldtimer
- Posts: 3670
- Joined: Sat Sep 06, 2003 5:00 pm
Re: one inner FTO GPX cv joint will not fit
Change the cup over?
- flateric
- Apprentice
- Posts: 41
- Joined: Sat Apr 06, 2013 12:38 pm
Re: one inner FTO GPX cv joint will not fit
what do you mean by changing the cup over ? i have 2 identical long inner cv joints. one fits on the passenger side and one does not go in all the way.
if it doesn't brake just hit the gas
----------------------------------------
Audi A6 avant 1.9 tdi - 175HP
Honda CRX 1986 - 130 HP
Mitsubishi FTO 1996 - 200HP
----------------------------------------
Audi A6 avant 1.9 tdi - 175HP
Honda CRX 1986 - 130 HP
Mitsubishi FTO 1996 - 200HP
- dstocks
- National Vice President
- Posts: 9529
- Joined: Fri Jun 24, 2005 5:00 pm
- Location: Utopia
- Contact:
Re: one inner FTO GPX cv joint will not fit
He just means that you should split the inner CV and just change the bit that goes into the gearbox.
Complete FTO (http://www.completefto.com.au/completefto.asp)
If you are trying to contact me and not getting a quick answer, its because im disorganised. Hassle me and ill get back to you
If you are trying to contact me and not getting a quick answer, its because im disorganised. Hassle me and ill get back to you
- flateric
- Apprentice
- Posts: 41
- Joined: Sat Apr 06, 2013 12:38 pm
Re: one inner FTO GPX cv joint will not fit
i didn't know that it was possible to split the CV cup but if i would have the one that fits i wouldn't need to split it, right? i;m going to measure the ones that i have at the end of the week and make a good picture and write the measurements in it.
if it doesn't brake just hit the gas
----------------------------------------
Audi A6 avant 1.9 tdi - 175HP
Honda CRX 1986 - 130 HP
Mitsubishi FTO 1996 - 200HP
----------------------------------------
Audi A6 avant 1.9 tdi - 175HP
Honda CRX 1986 - 130 HP
Mitsubishi FTO 1996 - 200HP
- Bennoz
- National President
- Posts: 23668
- Joined: Fri Jan 21, 2005 6:00 pm
- Location: Sydney
- Contact:
Re: one inner FTO GPX cv joint will not fit
Yep, just cut the tie on the rubber boot on the CV & it will slide off. Use it in the gearbox.
On a manual box, that stubby CV indicates the box has a viscous style LSD in it, not sure about auto boxes though..
On a manual box, that stubby CV indicates the box has a viscous style LSD in it, not sure about auto boxes though..
- flateric
- Apprentice
- Posts: 41
- Joined: Sat Apr 06, 2013 12:38 pm
Re: one inner FTO GPX cv joint will not fit
aaaaaahhh that's what you mean by splitting, yes i already did that. i have both cv joints splitted from the shafts.
if you look at this pic : http://imageshack.us/photo/my-images/812/dsc01757v.jpg/ it looks like the stubby one is 27 splines instead of 25, right ?
the 2nd and 5th on the pic from the left look like 25 splines and the 2nd is shorter than the 5th. (just maybe 5-10mm) which is exactly what is left before it goes in completely.
if you look at this pic : http://imageshack.us/photo/my-images/812/dsc01757v.jpg/ it looks like the stubby one is 27 splines instead of 25, right ?
the 2nd and 5th on the pic from the left look like 25 splines and the 2nd is shorter than the 5th. (just maybe 5-10mm) which is exactly what is left before it goes in completely.
if it doesn't brake just hit the gas
----------------------------------------
Audi A6 avant 1.9 tdi - 175HP
Honda CRX 1986 - 130 HP
Mitsubishi FTO 1996 - 200HP
----------------------------------------
Audi A6 avant 1.9 tdi - 175HP
Honda CRX 1986 - 130 HP
Mitsubishi FTO 1996 - 200HP
- flateric
- Apprentice
- Posts: 41
- Joined: Sat Apr 06, 2013 12:38 pm
Re: one inner FTO GPX cv joint will not fit

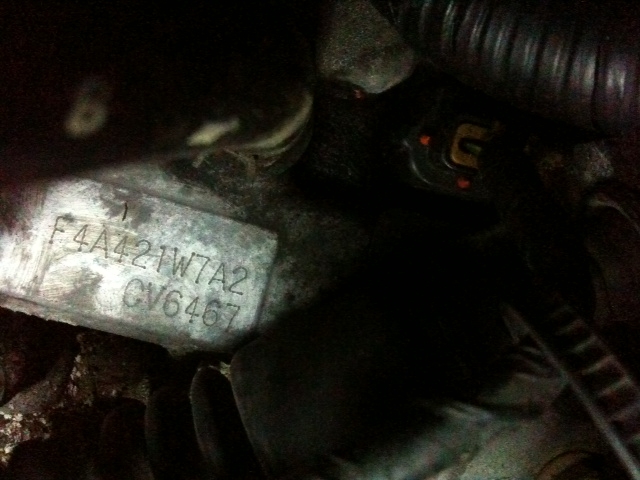

hi guys! i managed to get and see my fto again measuring my inner cv now and just made a pic of my gearbox code. is there a chance to find the correct shafts by using the code ?
