Vipfto's turbo project
Moderators: IMC, Club Staff
- vipfto
- Forum Moderator
- Posts: 4154
- jedwabna poszewka promocja
- Joined: Mon Oct 29, 2007 5:00 pm
- Location: Adelaide
Re: Vipfto's turbo project
remounted cooler much happier with position now ( same side in/out) so wont need to use slim fans
Have ordered new fittings for turbo oil and water lines run out of what I had left (Also these are speedflow and will be braided)
Looked at putting in the Redstuff pads today couldnt be bothered, nothing I can really do now but wait till pipes get done
And orderd all elbows I need for cooler piping I hope
still undecided on plumb back BOV or not? Or even go without completely?
Have ordered new fittings for turbo oil and water lines run out of what I had left (Also these are speedflow and will be braided)
Looked at putting in the Redstuff pads today couldnt be bothered, nothing I can really do now but wait till pipes get done
And orderd all elbows I need for cooler piping I hope
still undecided on plumb back BOV or not? Or even go without completely?
FTO GR-TURBO
172KW ATW @ 11PSI
172KW ATW @ 11PSI
- Astron_Boy
- Trolling Gen Y
- Posts: 8400
- Joined: Sun May 27, 2007 5:00 pm
- Location: Wine Country NSW
- Contact:
Re: Vipfto's turbo project
plumb back.
-
- 9.5"
- Posts: 6793
- Joined: Tue Oct 13, 2009 5:00 pm
Re: Vipfto's turbo project
Would love to see some pictures
- vipfto
- Forum Moderator
- Posts: 4154
- Joined: Mon Oct 29, 2007 5:00 pm
- Location: Adelaide
Re: Vipfto's turbo project
will get some up soon not much to look at reallky except few braided lines FPR and big hole where turbo will go so far
also have bought boost gauge now and looking for BOV
also have bought boost gauge now and looking for BOV
FTO GR-TURBO
172KW ATW @ 11PSI
172KW ATW @ 11PSI
- vipfto
- Forum Moderator
- Posts: 4154
- Joined: Mon Oct 29, 2007 5:00 pm
- Location: Adelaide
Re: Vipfto's turbo project
BOV sorted have option of going either atmo or plumback will run atmo just till I get over the wet my pants sound of FTO pshhhh
Decided to keep using Emanage but dont have injector harness although not sure if will be required seeing as larger injector/pump and adjustable FPR already installed I think just basic Air/fuel management will suffice (if anyone can shed some more light on if injecor harness needed please do so)
Decided to keep using Emanage but dont have injector harness although not sure if will be required seeing as larger injector/pump and adjustable FPR already installed I think just basic Air/fuel management will suffice (if anyone can shed some more light on if injecor harness needed please do so)
FTO GR-TURBO
172KW ATW @ 11PSI
172KW ATW @ 11PSI
- Shane001
- Oldtimer
- Posts: 2730
- Joined: Tue Jul 21, 2009 5:00 pm
- Location: Sydney
- Contact:
Re: Vipfto's turbo project
you're gonna need to be able to tune fuel, this is critical with a turbo setup.
- vipfto
- Forum Moderator
- Posts: 4154
- Joined: Mon Oct 29, 2007 5:00 pm
- Location: Adelaide
Re: Vipfto's turbo project
Shane001 wrote:you're gonna need to be able to tune fuel, this is critical with a turbo setup.
surely just the air/fuel adjustment will do seeing as can control fuel pressure already via FPR, Does the injector harness only adjust cycle of injectors (larger already along with pump) or can it also control more?
Bearing in mind will be running low boost nothing over 7 PSI
FTO GR-TURBO
172KW ATW @ 11PSI
172KW ATW @ 11PSI
- Astron_Boy
- Trolling Gen Y
- Posts: 8400
- Joined: Sun May 27, 2007 5:00 pm
- Location: Wine Country NSW
- Contact:
Re: Vipfto's turbo project
Even with a low psi, keep in mind, greatest always example. HKSFTO's extra fuel injector.
You will need fuel management.
And FYI, if you go atmo, you need diff tune then to plumb back, main reason is you will either over fuel, or run lean dependant. It has a bit of give, but can play with your ecu and engine over time.
Edit: having said that, HKS does allow for 2 boost levels, but....
You will need fuel management.
And FYI, if you go atmo, you need diff tune then to plumb back, main reason is you will either over fuel, or run lean dependant. It has a bit of give, but can play with your ecu and engine over time.
Edit: having said that, HKS does allow for 2 boost levels, but....
Last edited by Astron_Boy on Mon Oct 01, 2012 10:04 pm, edited 1 time in total.
- Shane001
- Oldtimer
- Posts: 2730
- Joined: Tue Jul 21, 2009 5:00 pm
- Location: Sydney
- Contact:
Re: Vipfto's turbo project
But how are you going to adjust AFR if you can't control the injectors?
- vipfto
- Forum Moderator
- Posts: 4154
- Joined: Mon Oct 29, 2007 5:00 pm
- Location: Adelaide
Re: Vipfto's turbo project
does the emanage not already control fuel via 'fooling ecu' its recieving more air to allow for more fuel?
To be sure will get injector harness for safety, just not convinced its required.... esp if i turn up fuel pressure it runs extremely rich in N/A form so must be flowing greater amounts of fuel just not electronically controlled
Will ask tuner tomorrow but will also take on any advice given here too
So far kept well under budget and have all parts needed except up/down pipes so dont mind getting extras for more peace of mind.
Do find it interesting that Kermut used to run bout 8psi on standard ECU for years too
And yes will most likely go to plumb back Astron but also hardly drive FTO (lucky tuning work cost next to nothing on dyno due to sponsoring the tuners drift cars )
To be sure will get injector harness for safety, just not convinced its required.... esp if i turn up fuel pressure it runs extremely rich in N/A form so must be flowing greater amounts of fuel just not electronically controlled
Will ask tuner tomorrow but will also take on any advice given here too
So far kept well under budget and have all parts needed except up/down pipes so dont mind getting extras for more peace of mind.
Do find it interesting that Kermut used to run bout 8psi on standard ECU for years too
And yes will most likely go to plumb back Astron but also hardly drive FTO (lucky tuning work cost next to nothing on dyno due to sponsoring the tuners drift cars )
FTO GR-TURBO
172KW ATW @ 11PSI
172KW ATW @ 11PSI
- Shane001
- Oldtimer
- Posts: 2730
- Joined: Tue Jul 21, 2009 5:00 pm
- Location: Sydney
- Contact:
Re: Vipfto's turbo project
I haven't used the Blue but yes possibly it would, essentially the same as the Haltech does, but personally I wouldn't rely on this for tuning a turbo application. But it's your enginevipfto wrote:does the emanage not already control fuel via 'fooling ecu' its recieving more air to allow for more fuel?
- Astron_Boy
- Trolling Gen Y
- Posts: 8400
- Joined: Sun May 27, 2007 5:00 pm
- Location: Wine Country NSW
- Contact:
Re: Vipfto's turbo project
Yeah, as mentioned the HKS had 2 boost settings, so I think the extra injector was a safety factor mainly.vipfto wrote:Do find it interesting that Kermut used to run bout 8psi on standard ECU for years too
And yes will most likely go to plumb back Astron but also hardly drive FTO (lucky tuning work cost next to nothing on dyno due to sponsoring the tuners drift cars )
And that's pretty good then with the tuning bit. helps.
- vipfto
- Forum Moderator
- Posts: 4154
- Joined: Mon Oct 29, 2007 5:00 pm
- Location: Adelaide
Re: Vipfto's turbo project
updates:
Car at shop for up/down pipes to be fab'd
Once back just have to plumb up oil feed and water lines (have done all new braided lines except drain line, running oil feed line from filter sandwich plate water lines from TB) then remove sump cleanup and tap in for oil return line. install new oil pressure and boost gauges
After that will sort plumbing to intercooler not really looking forward to that have most of joiners/elbows I need but will sort actual piping when I figure how it will go
then down to tuner and hopefully no dramas. Have now got injector harness for ECU too. Interestingly spoke to tuner did say injector harness not a big deal as not adding extra injectors and that they are not a massive size increase over factory more concerned about being able to adjust A/F ratio but it will still be beneficial. Also said BOV not really needed but still installing anyway.
Here are a couple of pics no particular order sorry
will put more once back from pipe work
Car at shop for up/down pipes to be fab'd
Once back just have to plumb up oil feed and water lines (have done all new braided lines except drain line, running oil feed line from filter sandwich plate water lines from TB) then remove sump cleanup and tap in for oil return line. install new oil pressure and boost gauges
After that will sort plumbing to intercooler not really looking forward to that have most of joiners/elbows I need but will sort actual piping when I figure how it will go
then down to tuner and hopefully no dramas. Have now got injector harness for ECU too. Interestingly spoke to tuner did say injector harness not a big deal as not adding extra injectors and that they are not a massive size increase over factory more concerned about being able to adjust A/F ratio but it will still be beneficial. Also said BOV not really needed but still installing anyway.
Here are a couple of pics no particular order sorry
will put more once back from pipe work
- Attachments
-

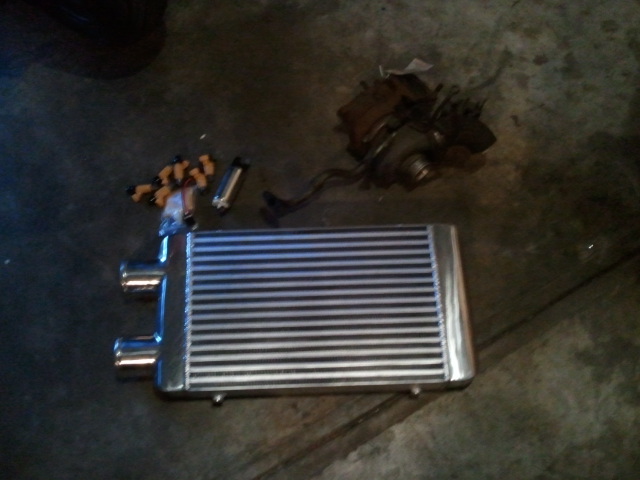

- Turbo/intercooler Injectors and fuel pump
- 2012-09-19 18.06.22.jpg (91.7 KiB) Viewed 737 times
-

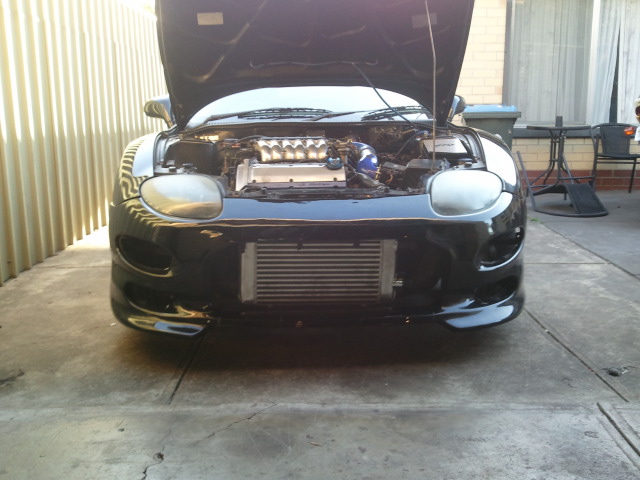

- intercooler test fit
- 2012-09-21 17.05.43.jpg (94.63 KiB) Viewed 737 times
-

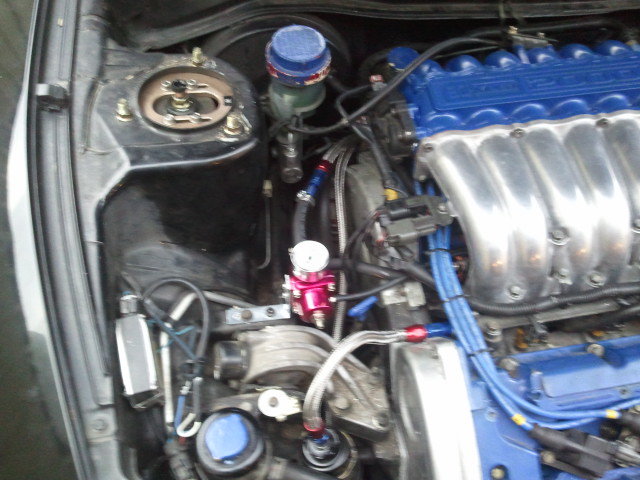

- fuel filter relocated All new lines in from pump and return line with FPR rail turned around and injectors all installed
- 2012-10-05 18.02.14.jpg (97.19 KiB) Viewed 737 times
-
- 2012-10-05 18.02.22.jpg
- where Turbo will be mounted
- (96.5 KiB) Downloaded 145 times
-

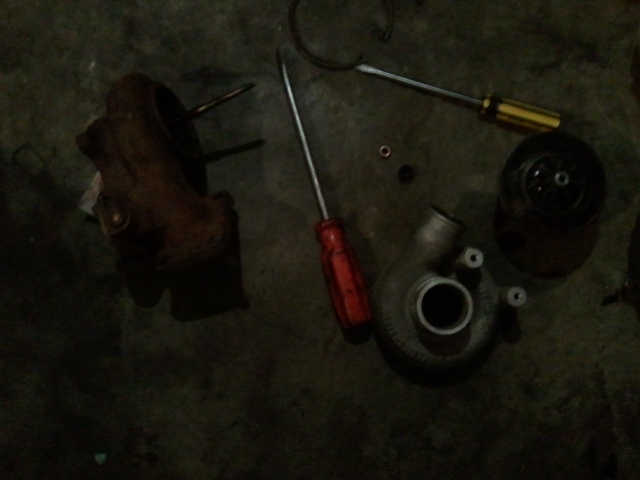

- Turbo being reclocked the circlip is a pain highly recommend a good set of circlip pliers
- 2012-09-27 22.08.25.jpg (100.99 KiB) Viewed 737 times
FTO GR-TURBO
172KW ATW @ 11PSI
172KW ATW @ 11PSI
- vipfto
- Forum Moderator
- Posts: 4154
- Joined: Mon Oct 29, 2007 5:00 pm
- Location: Adelaide
Re: Vipfto's turbo project
updates:
None really
Pipes not done yet two reasons 1. will be cheap so they wont rush it of course although guy doing it goes on holiday soon so will be done before then, 2. didnt have correct down pipe flange and gasket all sorted now should have by tomorrow although that does not meant will be done tomorrow
Rest of all stuff I need has arrived (gauges and new s/wich plate adapter and couple more elbows) only thing left is cooler piping which cant organise till have her back from pipe work
Total cost so far approx 2k will put up final price list once completed only extra now is piping and tune (which will be free)
None really
Pipes not done yet two reasons 1. will be cheap so they wont rush it of course although guy doing it goes on holiday soon so will be done before then, 2. didnt have correct down pipe flange and gasket all sorted now should have by tomorrow although that does not meant will be done tomorrow
Rest of all stuff I need has arrived (gauges and new s/wich plate adapter and couple more elbows) only thing left is cooler piping which cant organise till have her back from pipe work
Total cost so far approx 2k will put up final price list once completed only extra now is piping and tune (which will be free)
FTO GR-TURBO
172KW ATW @ 11PSI
172KW ATW @ 11PSI
- vipfto
- Forum Moderator
- Posts: 4154
- Joined: Mon Oct 29, 2007 5:00 pm
- Location: Adelaide
Re: Vipfto's turbo project
Finally pipes being done now hopefully finished and back home tomorrow.... only prob is forgot to relocate clutch line so will have to do that too, anyone know the thread for inlet to master and slave cylinders?
FTO GR-TURBO
172KW ATW @ 11PSI
172KW ATW @ 11PSI
- ObsidianRadio
- Oldtimer
- Posts: 2050
- Joined: Sat Jan 21, 2012 4:08 am
- Location: Adelaide, SA
- Contact:
Re: Vipfto's turbo project
Nice work man!! Can't wait to see it all finished, you're taking me for a cruise
Jack
Livin' the Slow Life. 1997 GP Version-R | 1995 GS/GR Version-SparkleFairy
http://www.facebook.com/SlowLifeAU
Livin' the Slow Life. 1997 GP Version-R | 1995 GS/GR Version-SparkleFairy
http://www.facebook.com/SlowLifeAU
- Kustom
- Oldtimer
- Posts: 6144
- Joined: Sun Oct 04, 2009 5:00 pm
- Location: Brisbane
Re: Vipfto's turbo project
Props for quick install!
--------------------------------------------------------------------------
Sent from my iPhone using Tapatalk!
--------------------------------------------------------------------------
Sent from my iPhone using Tapatalk!
Taz wrote:When funds allow
- vipfto
- Forum Moderator
- Posts: 4154
- Joined: Mon Oct 29, 2007 5:00 pm
- Location: Adelaide
Re: Vipfto's turbo project
OK finally back from pipe work and what a job!!
All mandrel bends (most have been pre-cut and welded together looks like factory made almost) For dump pipe could only fit 2.5inch which is fine as matches rest of zorst. For outlet they used two pipes one for actual exhaust and one for wastgate which merges together very tidy done, pics will be up over next few days as now have to disassemble and fit all oil/water lines and sort out intercooler piping.
Cost for pipe work $1000 (very cheap) took over two full days of labour guy that did it has over 20 years experience in custom jobs like this but did mention this was one of the biggest pain in the arse jobs he has done.
With the job he has done actually considering to get him to cooler piping too but will see how I go first.
Hopefully as long as rest of work goes smoothly will be running in 2-3 weeks
Still not sure for oil return line either weather to tap into sump with brass fitting or too weld pipe to it but will figure out pretty much last thing before test fire and tune
All mandrel bends (most have been pre-cut and welded together looks like factory made almost) For dump pipe could only fit 2.5inch which is fine as matches rest of zorst. For outlet they used two pipes one for actual exhaust and one for wastgate which merges together very tidy done, pics will be up over next few days as now have to disassemble and fit all oil/water lines and sort out intercooler piping.
Cost for pipe work $1000 (very cheap) took over two full days of labour guy that did it has over 20 years experience in custom jobs like this but did mention this was one of the biggest pain in the arse jobs he has done.
With the job he has done actually considering to get him to cooler piping too but will see how I go first.
Hopefully as long as rest of work goes smoothly will be running in 2-3 weeks
Still not sure for oil return line either weather to tap into sump with brass fitting or too weld pipe to it but will figure out pretty much last thing before test fire and tune
FTO GR-TURBO
172KW ATW @ 11PSI
172KW ATW @ 11PSI
- Taz
- Oldtimer
- Posts: 3995
- Joined: Wed Jan 05, 2011 11:50 am
- Location: Your mothers house
Re: Vipfto's turbo project
Im going to have the same dilemma with the oil return - i was thinking tapping in would be easier in the long run?
Bennoz wrote: Cum gunt it!
- vipfto
- Forum Moderator
- Posts: 4154
- Joined: Mon Oct 29, 2007 5:00 pm
- Location: Adelaide
Re: Vipfto's turbo project
Wont really matter either way just depends on how thick sump wall is to how thread can tap, Pipe with hose is fine as not under any pressure but I want to keep common theme of braided lines and fittings plus much better for heat resistanceTaz wrote:Im going to have the same dilemma with the oil return - i was thinking tapping in would be easier in the long run?
